Equipment

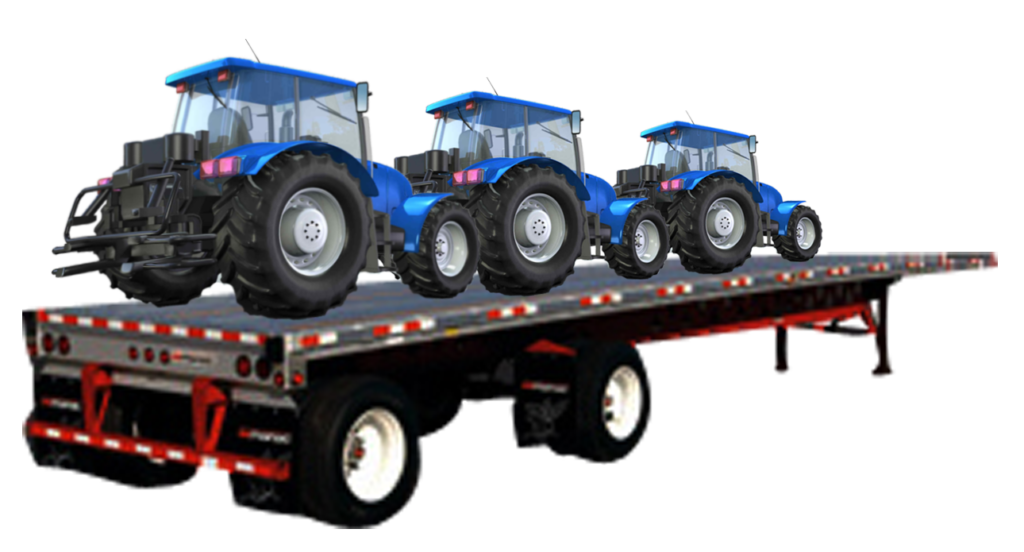

Flat Bed: Flatbeds are one of the most commonly used trailers due to their versatility. A flatbed trailer can be loaded from the top, sides, or rear of the trailer making it a primary and common asset to the flatbed trucking industry.

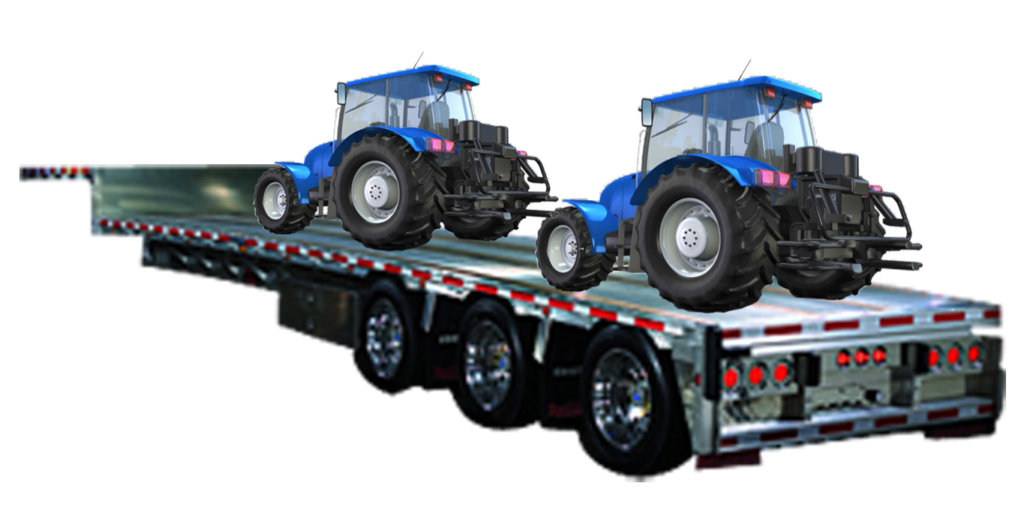

Step Deck: Step Deck Trailers also known as ‘drop deck’ trailers. These are a version of flatbed trailers, with a top and bottom deck. They are designed to haul freight that cannot be transported on a standard flatbed (usually due to height restrictions).
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Freight Weight
48,000lbs
Max. Freight DimensionsLength- 37ft.(bottom deck)
Length- 11ft.(top deck)
Width- 8ft. 6in.
Height- 10ft. (bottom deck)

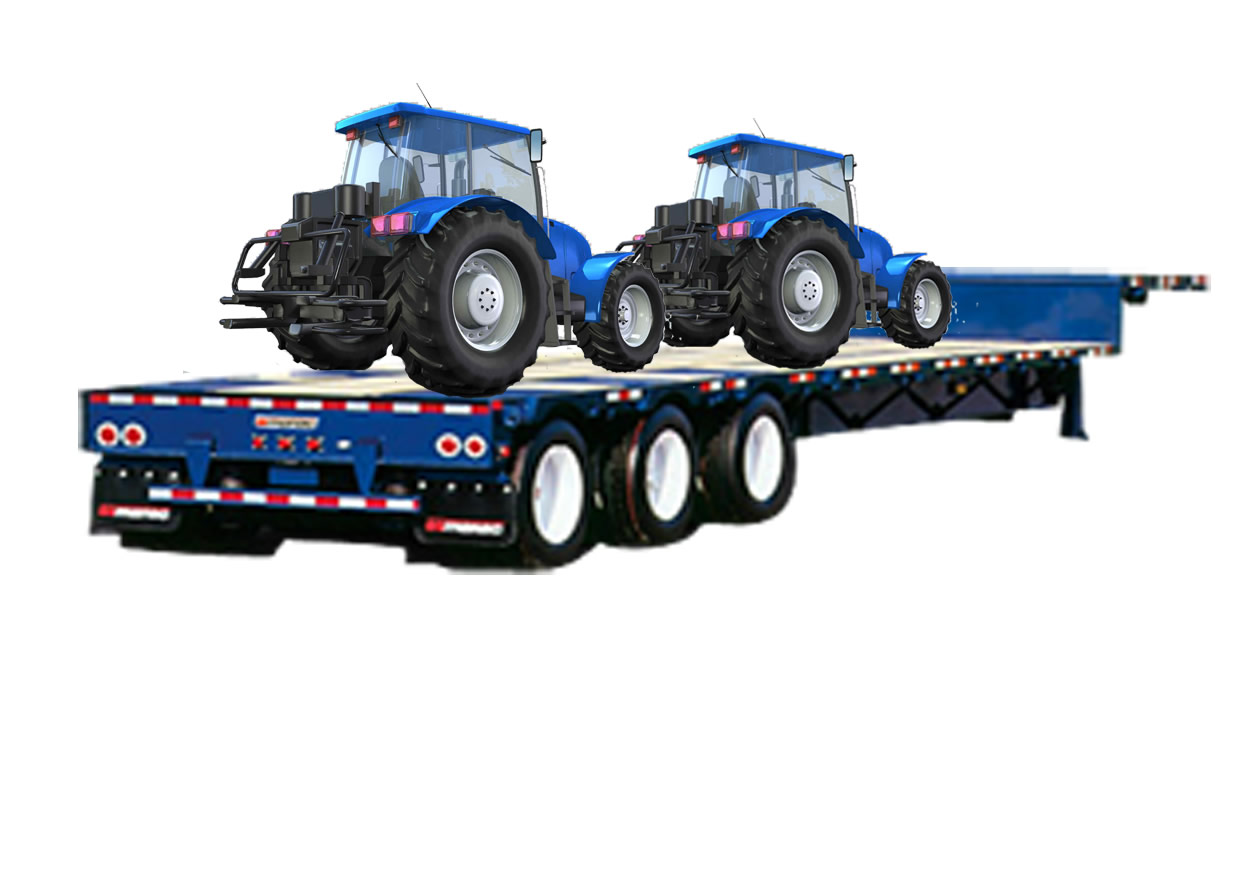

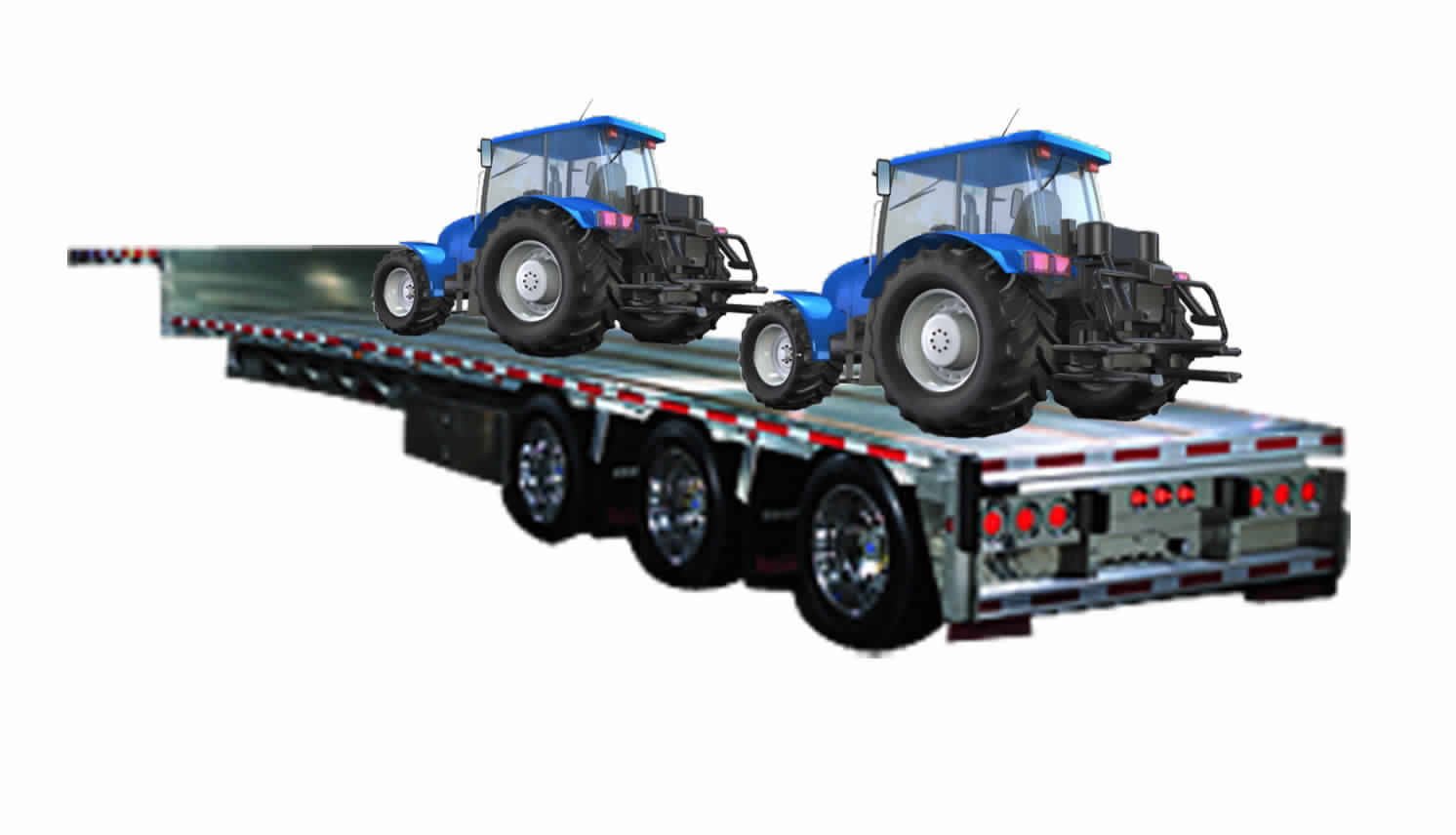

Extendable Flatbeds: Also known as flatbed stretch trailers. They are designed for loads or freight that is too long to transport on a standard flatbed trailer, and that require the support of this trailer so there is no overhang.
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Freight Weight
43,000lbs
Max. Freight DimensionsMain Deck
Length- 48-80ft.
Width- 8ft. 6in.
Height- 8ft. 6in.

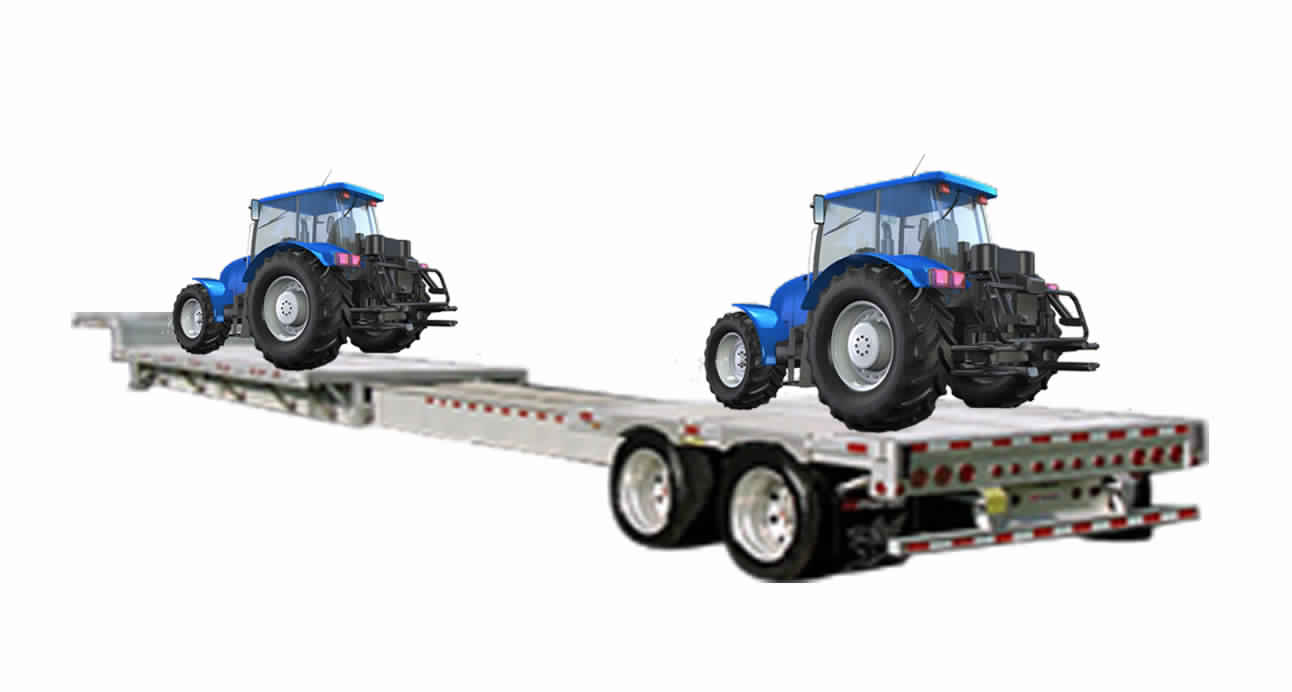

Stretch Single-Drop Deck: Extendable drop decks are designed for loads or freight that are too long to transport on a standard step deck, and that require the support of this trailer so there is no overhang. They are also designed to haul freight that cannot be transported on a standard step deck. This is usually due to length restrictions.
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Max. Freight Weight
45,000lbs
Max. Freight DimensionsMain Deck
Length- 35ft. to 63ft.
Width- 8ft. 6in.
Height-10ft.
Front Deck
Length- 10ft.
Width- 8ft. 6in.
Height- 8ft. 6in.

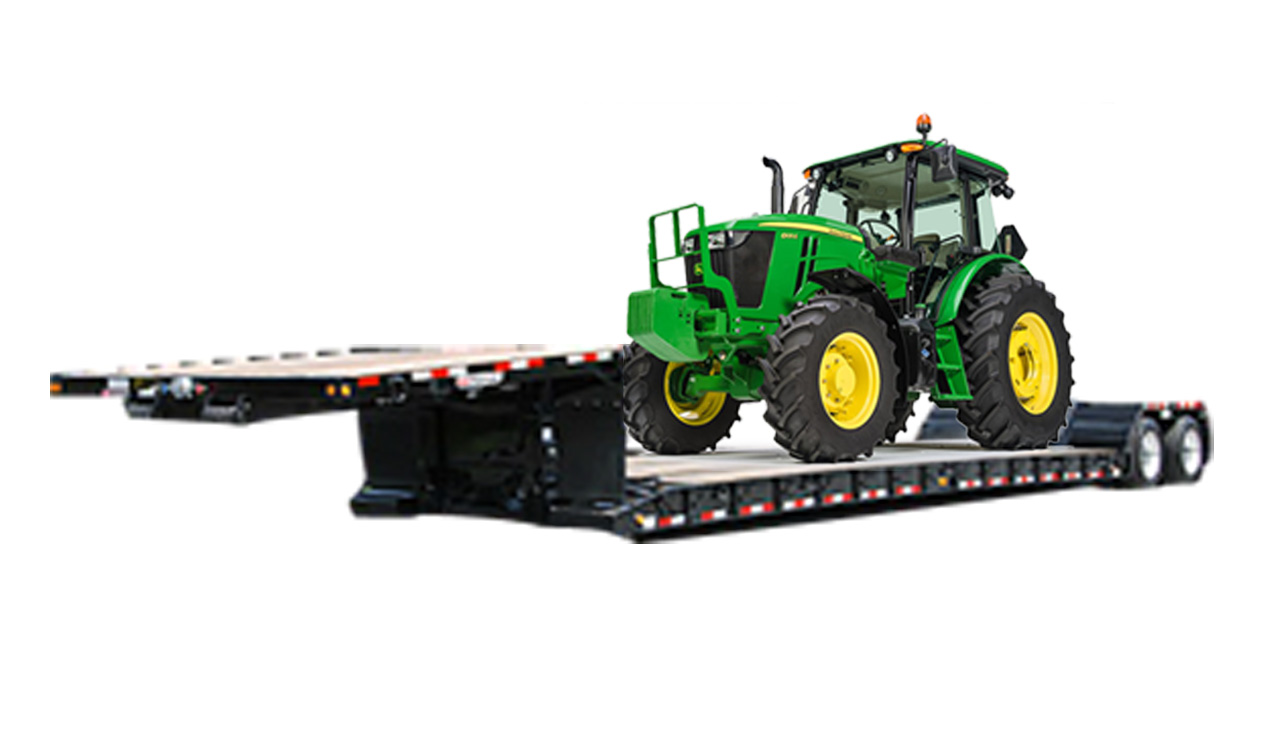

Double Drop: Double drops are used generally for over sized freight. The lower deck height, lets you load products that are taller then 10’ tall. A has a longer piece of trailer in the middle that is called the “well” and then a front and back deck of the trailer also. The “well” usually ranges from 25 ft. to 29ft.
Maximum Freight Weight
36,000-42,000lbs
Standard Freight Dimensions:Main Deck
Length- 25 to 29ft.
Width- 8ft. 6in.
Height-11ft. 6in.Front Deck
Length- 10ft.
Width- 8ft. 6in.
Height-8ft. 6in.Rear Deck
Length- 9ft.
Width- 8ft. 6in.
Height-10ft.

Stretch Double-Drop: Extendable Double Drop are designed for loads or freight that are too long to haul on a standard double drop trailer. They commonly have 2 or 3 axles depending on weight of freight.
This trailer accommodates freight with the maximum legal weight and dimensions shown below.
Standard Freight Weight
40,000lbs
Max. Freight Dimensions Main Deck
Length- 29 to50 ft.
Width- 8ft. 6in.
Height-11ft. 6in.
Front Deck
Length- 10ft.
Width- 8ft. 6in.
Height-8ft. 6in.
Rear Deck
Length- 9ft.
Width- 8ft. 6in.
Height-10ft.

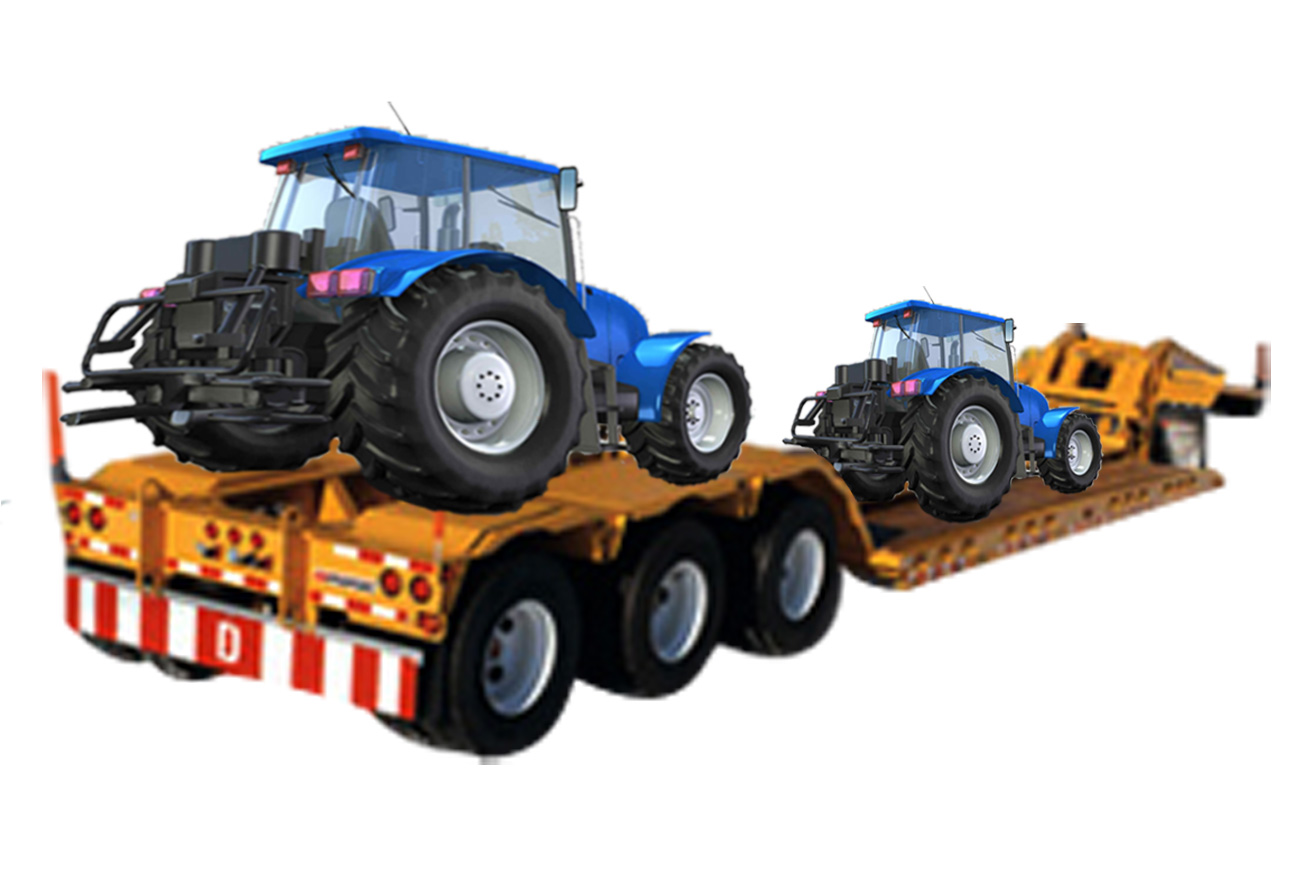

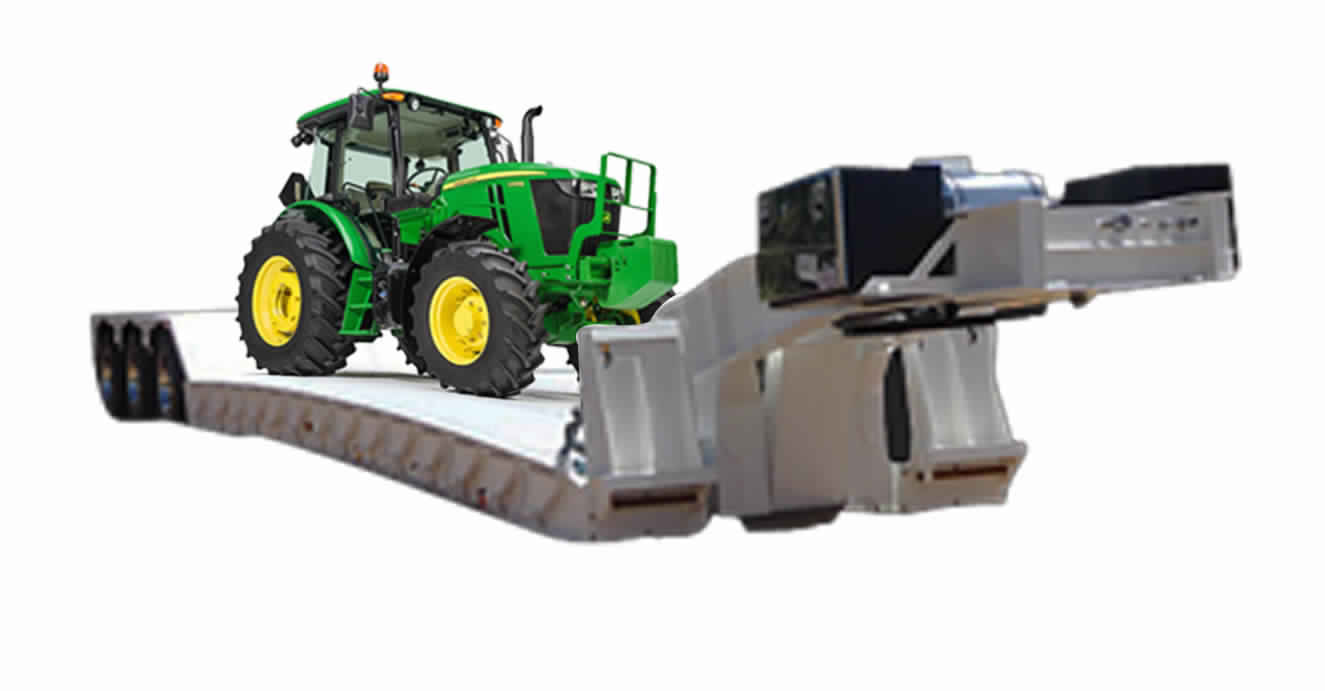

RGN: Removable Gooseneck (RGN) trailers give you the choice to move those same tall loads or freight, but also give you the ability to load large pieces of equipment onto the trailer by driving them on. On this trailer the front of the trailer is detachable, which allows the trailer to drop to the ground and create its own ramp. These types of trailers can be designed to haul up and over 150,000lbs worth of equipment. RGNs can go from a 3 axle RGN to 20 plus axle, the more axles the heavier the shipment can weigh. Heavy haul trailers such as these are more specialized then some of the other trailer types and this makes them more expensive to use.
A standard RGN accommodates freight with the maximum legal weight and dimensions shown below.
Max. Freight Weight
42,000lbs
Max. Freight DimensionsMain Deck
Length- 29ft.
Width- 8ft. 6in.
Height- 11ft. 6in.
Front Deck
Length- 10ft.
Width- 8ft. 6in.
Height- 8ft. 6in.
Rear Deck
Length- 9ft.
Width- 8ft. 6in.
Height-10ft.

Stretch RGN: Stretch RGN’s are designed for loads that are too long to haul on a standard RGN trailer. Stretch RGN’s range from a 3 axles, and up depending on freight weight. The more axles on the trailer, the heavier the load or freight can be.
Standard Freight Weight
42,000-150,000lbs and up
Max. Freight DimensionsMain Deck
Length- 29 to 65ft.
Width- 8ft. 6in.
Height-11ft. 6in.
.

Van or Dry Van ( Enclosed Box ) : Vans or Dry Vans are enclosed trailers generally used to keep freight safe from the elements of the road and weather. These trailers may only be loaded from the rear, and are generally loaded from a loading dock. A curtain van is similar, but can be loaded from the side as well.
Max. Freight Weight
42,000-45,000lbs
Max. Freight DimensionsMain Deck
Length- 48 or 53 ft.
Width- 8ft. 2in.
Height- 9ft

.

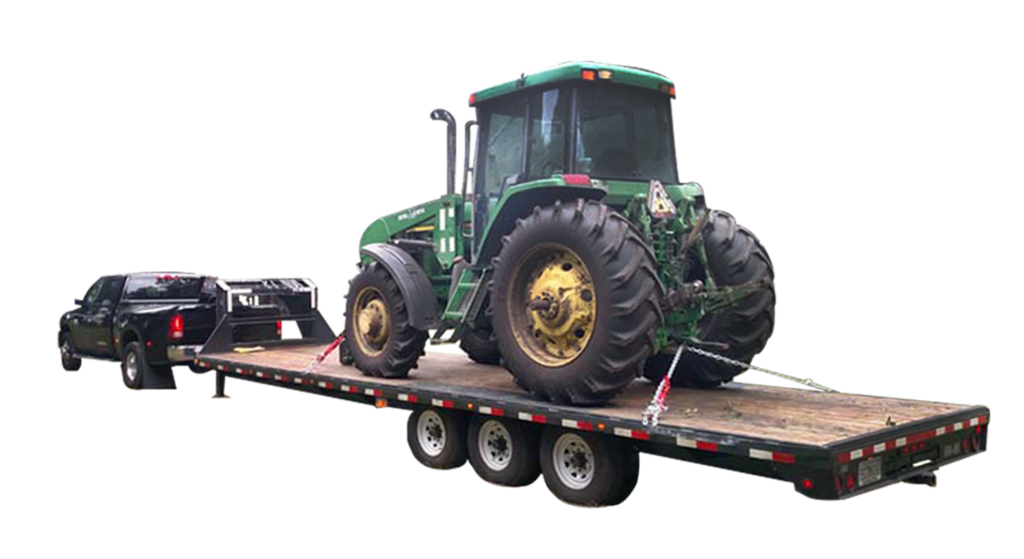

HOTSHOT
Hauling expedited loads and hot shot freight is a choice job for many truckers.
Expedite was sometimes referred to as hotshot. Currently expedite refers to vans straight trucks and T/T’s delivering time sensitive freight.
18000 LBS or less.

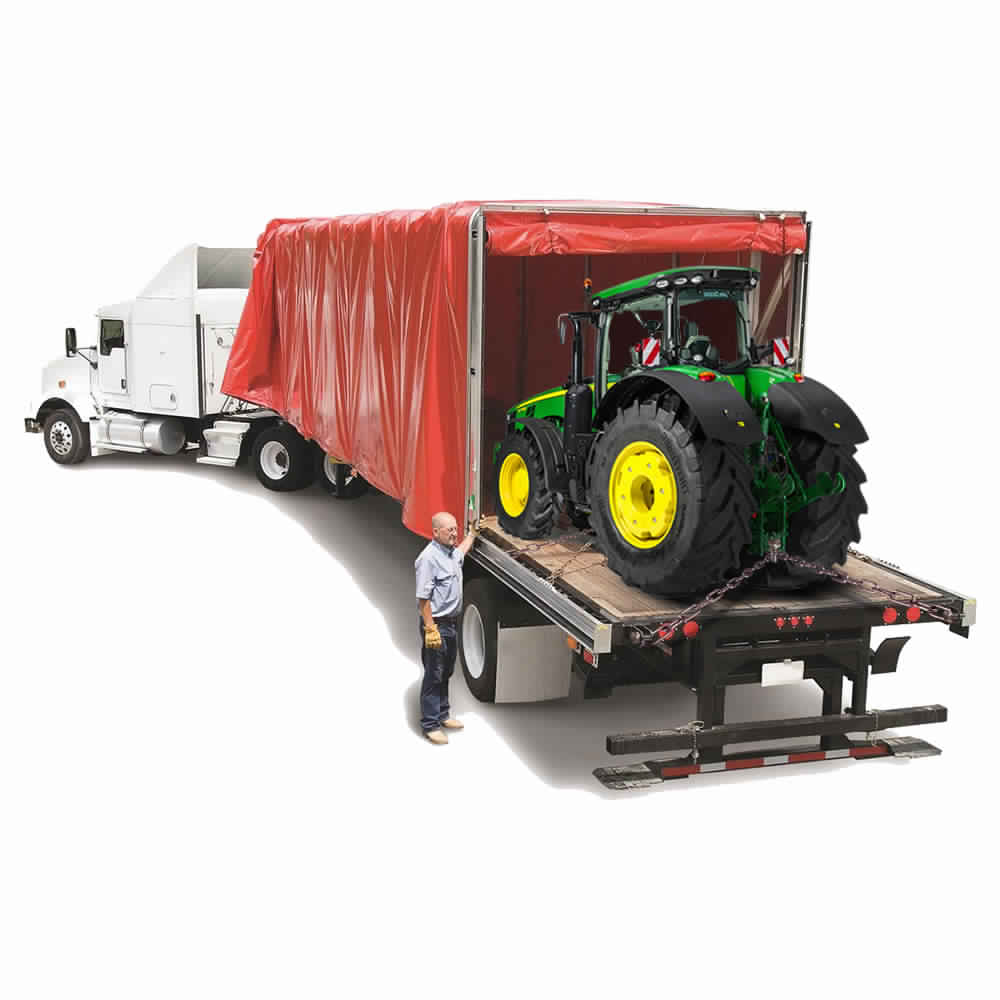

Conestoga:
Conestoga (this ia a brand name also) trailers have a rolling tarp system that can quickly cover and uncover a flatbed trailer. This system provides protection form the elements of the road and weather for products, loads, freight or equipment that require flatbed transport.
Max. Freight Weight
42,000-45,000lbs
Max. Freight DimensionsMain Deck
Length- 48 or 53 ft.
Width- 8ft 2in.
Height- 8ft.

Side-kit :
Side-kit these trailers use panels, curved metal bow-shaped spines, and stakes affixed to the side-perimeter of the flatbed trailer, this creates an external structure that allows tarps to be placed over the structure. This creates a covered trailer that will protecting the freight, the same as a tarp would.
Max. Freight Weight
42,000-45,000lbs
Max. Freight DimensionsMain Deck
Length- 48 or 53 ft.
Width- 8ft. 4in.

Power Only: Power only units are used for towing all different types of trailers. They can haul most trailer types depending on the hitch hookup. Normally trailers are equipped with a 5th wheel hitch, ball and hitch, or a pintle hitch. A standard power only usually has 3 axles. If the trailer type is overweight a 4 axle power only may be needed.
Max. Freight Weight
Wide Open -State requirements must be followed.
Max. Freight Dimensions
Wide Open- State requirements must be followed

Specialized trailers: There are some types of jobs that require specific specialized trailers. Some oversized and over dimensional pieces simply will not fit any other standard trailers. Some trailers are specially designed for these pieces. These types of trailers are those such as perimeter trailers, perimeter frame double goosenecks trailers, dolly trailers, etc. All of these are used in specific jobs that would require that specific type trailer.
Max. Freight Weight
200,000lbs Plus
Max. Freight Dimensions
Depend on state to state regulations and trailers specifications.

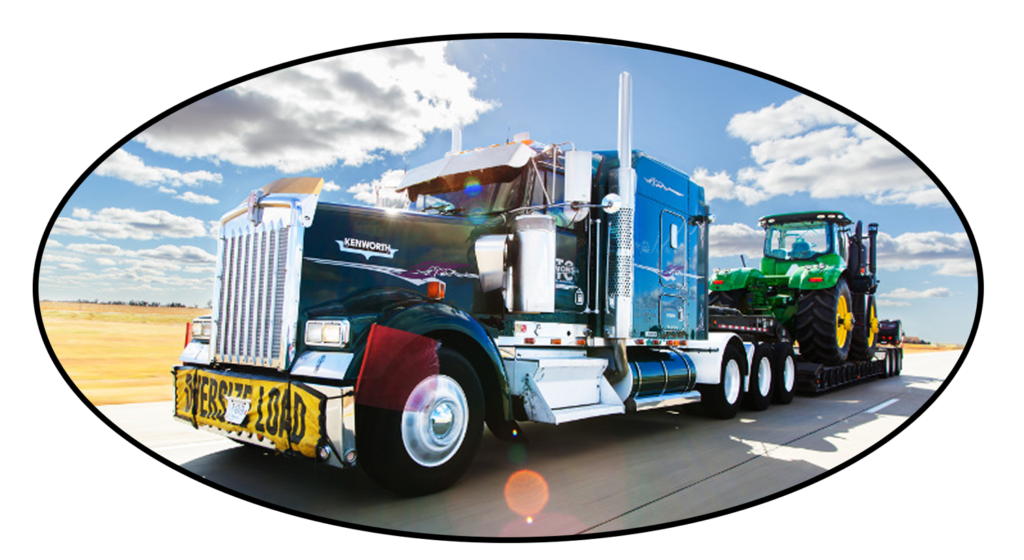

Heavy haul is a more complex way to transport oversized or overweight loads or freight. These heavy haul projects are also called Superloads, Farm Equipment Transport will arrange the logistics of the most difficult shipments your company may encounter, including, but not limited to:
